cube3D
This project is a 3D mini game, that uses raycasting to produce a FPP (first person perspective), just like in Wolfenstein3D or Doom.
It creates a 3D view from a map in a text file, and move the view as if we were walking and looking around.
An example of a map :
$> cat -e map.cub
111111111111111111111111$
1......................1$
1......................1$
1......................1$
1.....11111....1.1.1...1$
1.....1...1............1$
1.....1...1....1...1...1$
1.....1...1....E.......1$
1.....11.11....1.1.1...1$
1......................1$
1......................1$
1......................1$
1......................1$
1......................1$
1.......11.............1$
1.......11.............1$
111111..11............11$
11.1....11.............1$
11....1.11............11$
11.1....11.............1$
11.1111111............11$
11...................111$
1111111111..........1111$
111111111111111111111111$
$>

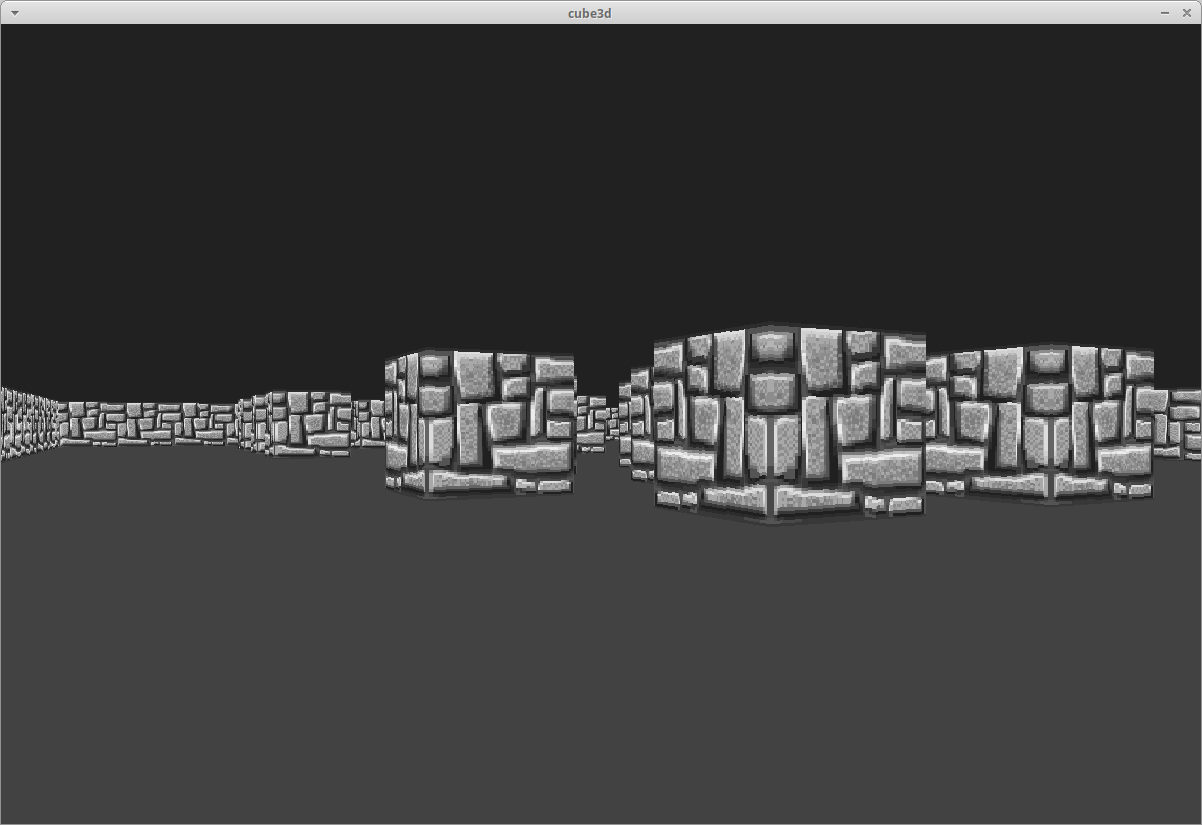

This map will produce this 3D view :
You can change the images on the wall :
And change the map itself :
raycasting
Raycasting is a technic that creates the illusion of 3D with very low computational power.
This technic has the hability to not show hidden area by design, which is a great simplification for rendering.
How it works :

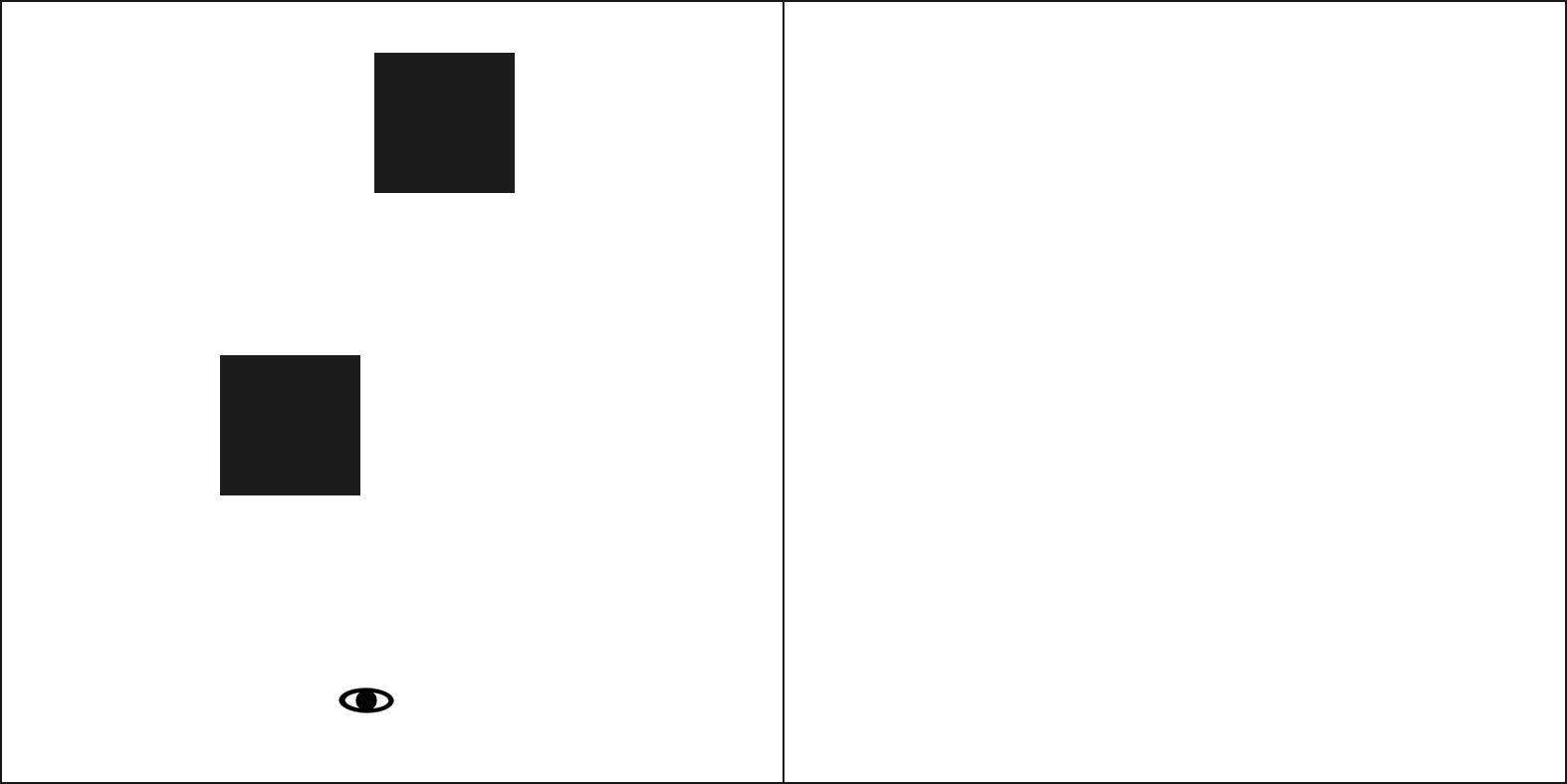

- first you determine the position and orientation of the viewer in a plan,

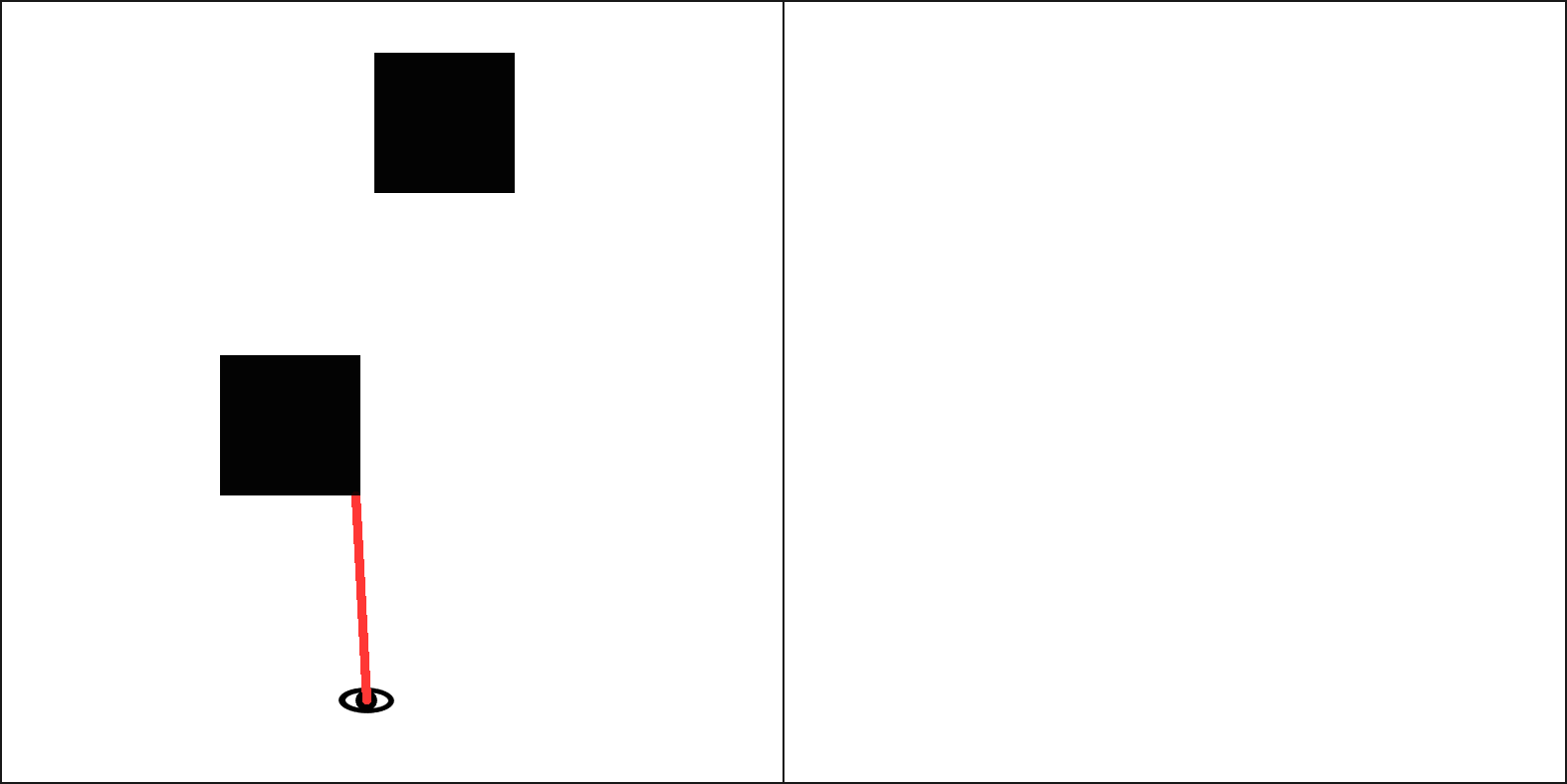

- then you cast a ray until it reaches a wall

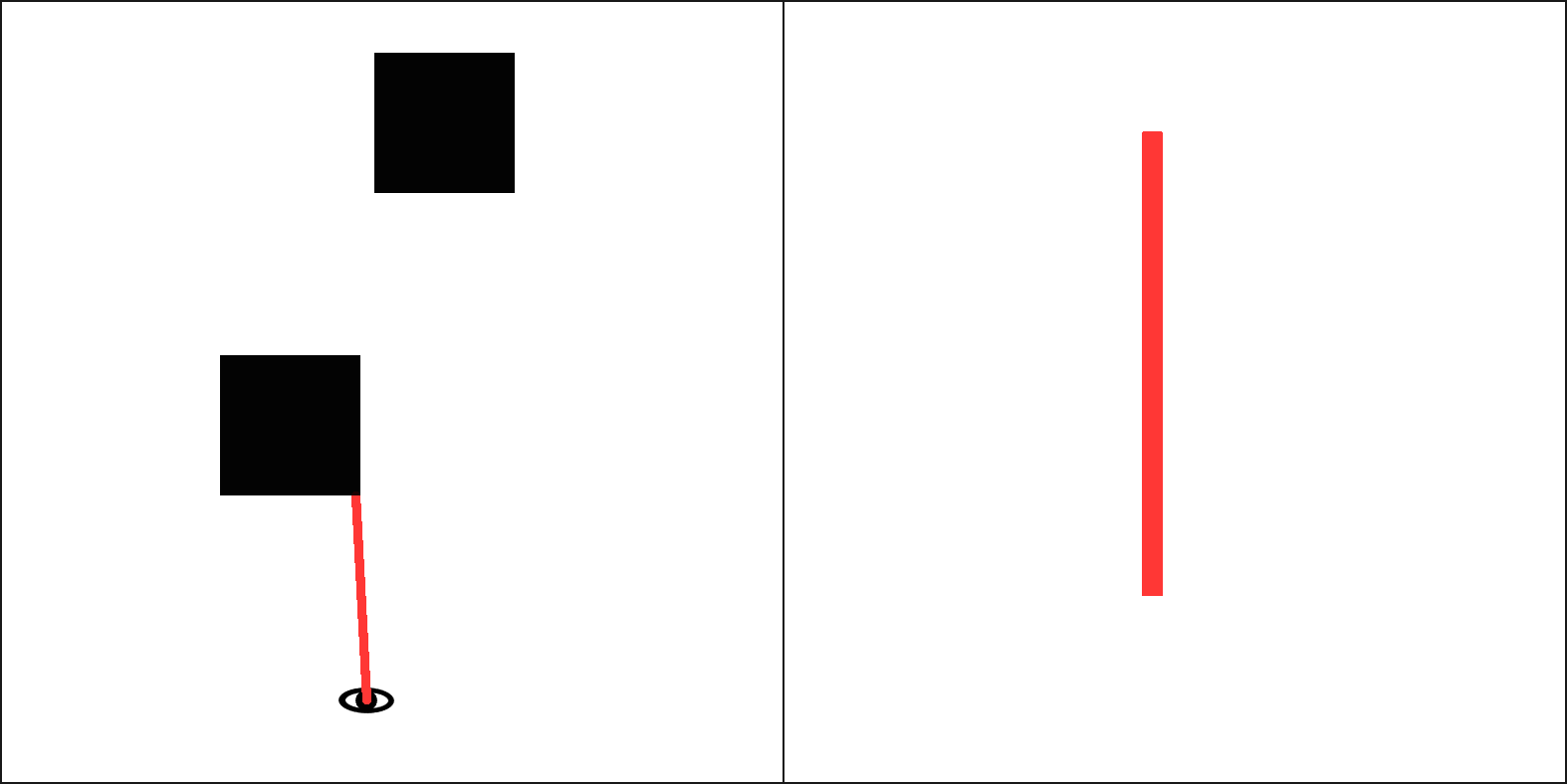

- you can now trace the vertical line on the 3D view
- the height of the wall is inversely proportional to the length of the ray : the closer the wall, the heigher it is

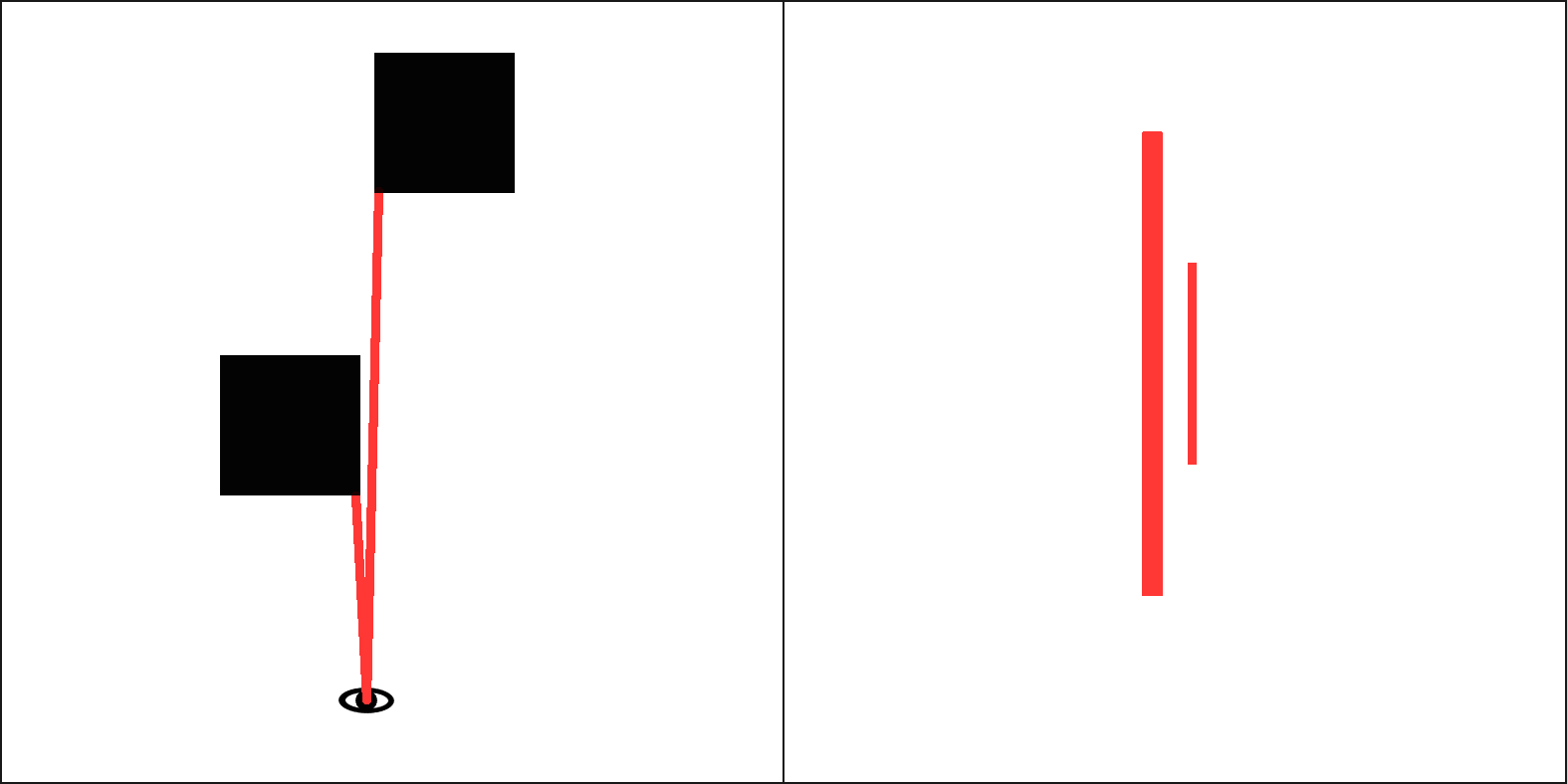

- finally, if the rays scan the whole picture, you see the perspective appears
- but you can also see that walls are rounded, like a fish eye effect. It's because rays change length while scanning the wall, so we must apply a correction to the angle

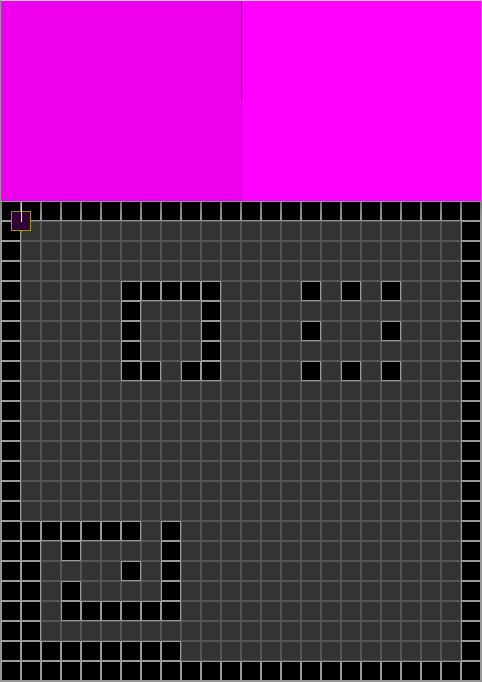

example of raycasting in action while construction of the project :
